Steel roofing sheet is made from galvanized or pre-painted corrugated steel sheet.

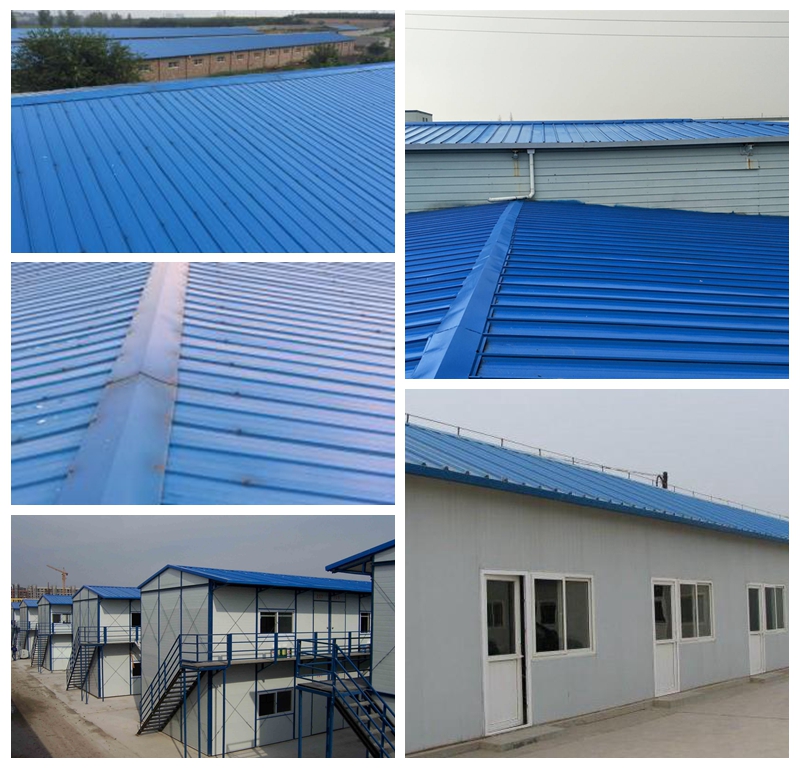

It is a component of the building envelope. Steel roofing can be used for residential and commercial buildings. YX25-205-820 has good effect on roof ceiling/wall and quick installation, only screws to fix on purlin.
|

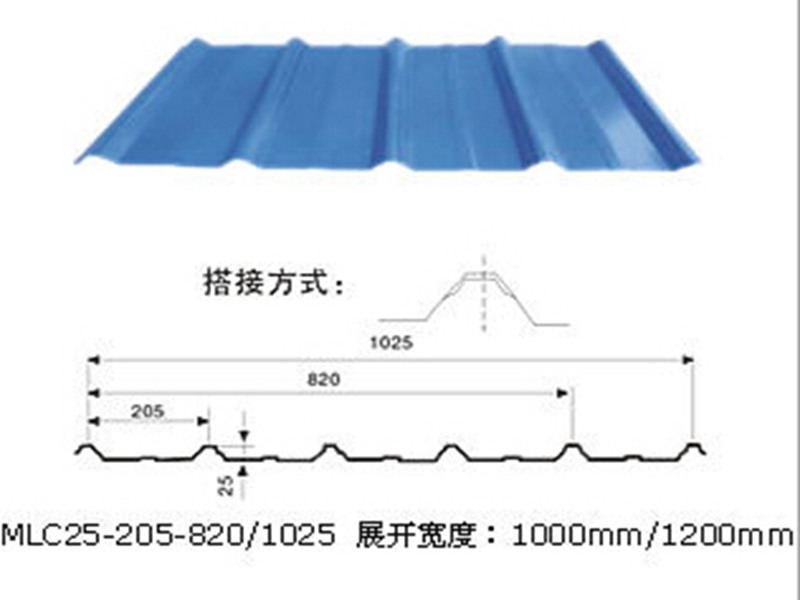

Model |
YX28-205-820 |
||
|
Effective width(mm) |
820 |
||
|
Feeding width(mm) |
1000 |
||
|
Rib Height(mm) |
28 |
||
|
Material |
Galvanized Steel |
||
|
Life Span(Year) |
15-20 |
||
|
Finish |
RAL5012 Sea blue or RAL color |
||
|
Brand |
SXGG |
||
|
Steel Grade |
Q235 |
||
|
Standard |
GB |
||
|
Application |
Roof ceiling, wall |
||
|
Thickness |
0.4 |
0.5 |
0.6 |
|
Section Inertia(cm4/m) |
10.28 |
12.05 |
16.34 |
|
Section Resistance(cm3/m) |
5.24 |
6.33 |
8.37 |
Our Roofing metal has lot of good properties:
(1) It is of attractive surface and reasonable design;
(2) It is with high and reliable quality;
(3) It is easy to assemble and dismantle;
(4) It is high practical applicability, economical efficiency and market occupy.
(5) We can make various kinds of roof metal, which will satisfy all the customer's need.
